PostgreSQL to Snowflake Using OpenFlow

Pooja Peddapally

Snowflake RBAC Management with Streamlit

1. Executive Summary

Problem: Organizations often struggle to move operational PostgreSQL data into Snowflake efficiently while maintaining freshness and reliability.

Recommended Approach: Use Snowflake OpenFlow with the PostgreSQL connector to capture database changes and ingest them into Snowflake.

Where it fits: Operational analytics, reporting pipelines, and real-time data synchronization use cases.

Key outcomes: Simplified ingestion architecture, low latency replication, improved pipeline reliability, and reduced operational overhead.

What the reader can implement: A practical PostgreSQL → Snowflake ingestion pipeline using OpenFlow with logical replication.

2. Background

Modern organizations typically separate operational databases from analytical systems. PostgreSQL is commonly used to support transactional workloads, while Snowflake is designed for large-scale analytics and reporting.

To enable analytics, operational data must be continuously ingested into the data warehouse. Traditional ETL pipelines often require multiple tools, custom scripts, and orchestration frameworks. These pipelines can become difficult to maintain as data volume grows.

Snowflake OpenFlow simplifies this process by providing a native data ingestion framework capable of capturing changes from external systems and loading them directly into Snowflake.

3. Problem

3.1 Symptoms

Data pipelines require multiple ETL tools and complex orchestration.

Operational data arrives in Snowflake with significant delays.

Pipeline failures require manual intervention and debugging.

3.2 Impact

Delayed data ingestion reduces the effectiveness of dashboards, reporting, and analytics. Data engineering teams also spend significant time maintaining ETL pipelines instead of building new data products. A scalable and reliable ingestion framework becomes necessary as data systems grow.

4. Requirements & Assumptions

4.1 Data & SLA

Data Volume: Millions of rows per month depending on application workload

Freshness/SLA: Near real-time or frequent ingestion

Environments: Development, staging, and production

4.2 Security & Compliance

Data Sensitivity: Typically non-PII operational data, though sensitive fields may exist

Access Model: Snowflake role-based access control (RBAC)

4.3 Tooling & Constraints

Ingestion tool: Snowflake OpenFlow

Source database: PostgreSQL hosted on AWS RDS

Constraints: Network connectivity, logical replication configuration, and schema evolution handling

5. Recommended Architecture

5.1 High-Level Flow

PostgreSQL stores operational data.
Logical replication captures database changes.
OpenFlow runtime connects to PostgreSQL.
PostgreSQL connector reads table changes.
Processors transform and stream the data.
Data is ingested into Snowflake tables.
Snowflake enables analytics and reporting.

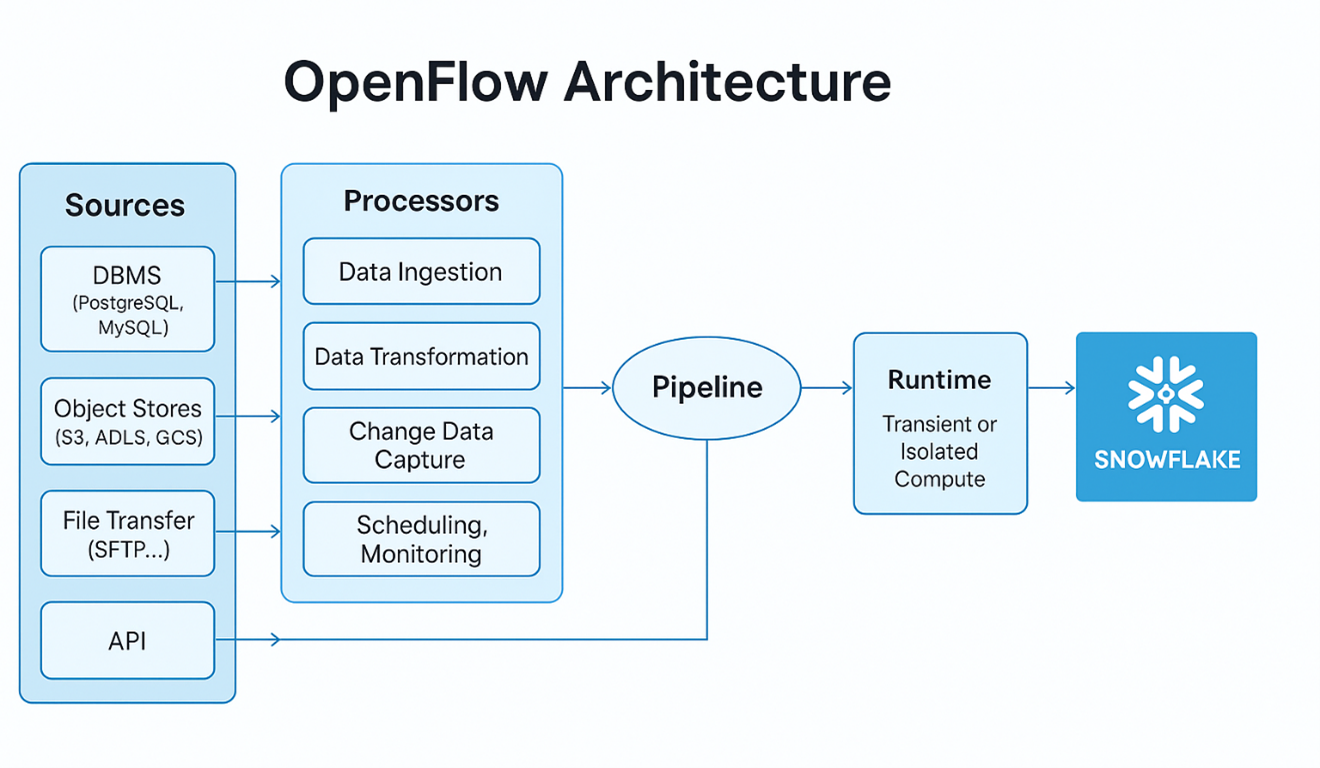

5.2 Architecture Diagram

PostgreSQL (RDS) → OpenFlow Runtime → Processors → Snowflake Tables → BI / Analytics

5.3 Options

Option A: Snapshot Ingestion

Full table extraction
Used for initial data loads

Option B: CDC Ingestion

Change Data Capture using logical replication
Used for continuous updates

Selection Guide

Snapshot ingestion is suitable for initial migrations
CDC ingestion is preferred for ongoing data synchronization

6. Implementation

6.1 Setup

Snowflake environment setup includes:

Creating database and schema
Configuring warehouse for processing
Creating roles for OpenFlow access
Configuring network rules and external access integrations

External configuration includes:

PostgreSQL database running on AWS RDS
Logical replication enabled
Network connectivity between Snowflake and PostgreSQL

6.2 Core Build Steps

Configure PostgreSQL logical replication settings.

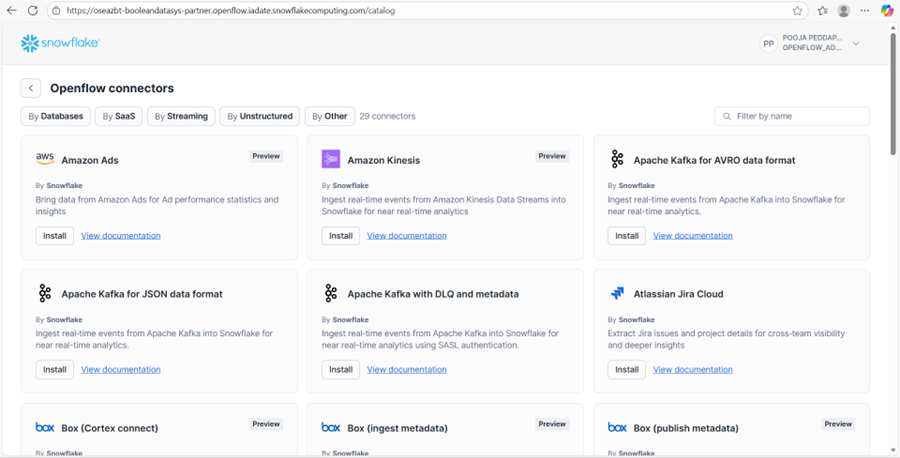

Deploy OpenFlow runtime and PostgreSQL connector.
Configure connection parameters (host, port, credentials).
Select tables to replicate.

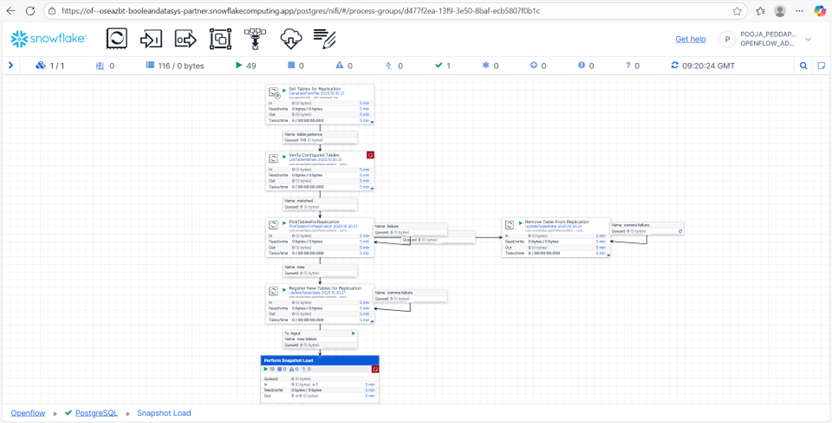

Enable processors and validate the data pipeline.

6.3 Configuration Defaults

Watermark Strategy: CDC via PostgreSQL replication logs
Deduplication Key: Primary key of source tables
Load Frequency: Continuous ingestion
Error Handling: Connector retries and runtime monitoring

7. Validation & Testing

7.1 Data Validation

Row Count Validation
Compare row counts between PostgreSQL and Snowflake tables.

Example:

SELECT COUNT(*) FROM postgres_table;
SELECT COUNT(*) FROM snowflake_table;

Duplicate Checks

SELECT id, COUNT(*)
FROM snowflake_table
GROUP BY id
HAVING COUNT(*) > 1;

Freshness Checks
Verify the latest ingestion timestamp matches the source database.

7.2 Reconciliation

Periodic reconciliation can be performed by comparing:

Row counts
Primary key distributions
Update timestamps

8. Security & Access

Required Snowflake permissions: Database usage, schema access, and table creation privileges
Secret management: Credentials stored securely within Snowflake integrations
Separation of duties: Data engineers configure pipelines while analysts consume data
Auditability: Snowflake query history and runtime logs provide monitoring and traceability

9. Performance & Cost

9.1 Performance Considerations

Use appropriate warehouse sizes depending on ingestion volume
Monitor runtime performance and connector throughput

9.2 Cost Drivers

Compute cost from Snowflake warehouses
Storage cost for ingested data
Data transfer costs if cross-region connections are used

9.3 Cost Controls

Configure auto-suspend warehouses
Use resource monitors
Optimize ingestion batch sizes

10. Operations & Monitoring

10.1 What to Monitor

Pipeline success or failure rate
Data freshness
Unexpected changes in data volume
Runtime health and connector status

10.2 Alerting

Alerts can notify administrators when pipelines fail or ingestion latency increases.

10.3 Runbook

Common issues:

Driver error → Upload correct PostgreSQL driver
Permission error → Reapply Snowflake role privileges
Connection failure → Verify network rules and security groups

11. Common Pitfalls

Missing Snowflake privileges for OpenFlow runtime
Incorrect PostgreSQL replication settings
Network connectivity issues
Large initial snapshot loads
Schema changes breaking ingestion pipelines

12. Variations / Use Cases

PostgreSQL CDC pipelines for operational analytics
API ingestion pipelines using OpenFlow
Real-time analytics dashboards
Machine learning pipelines requiring fresh operational data

13. Next Steps

Organizations implementing Snowflake ingestion pipelines should:

Evaluate CDC strategies for operational databases
Implement monitoring and alerting
Optimize warehouse sizing for ingestion workloads
